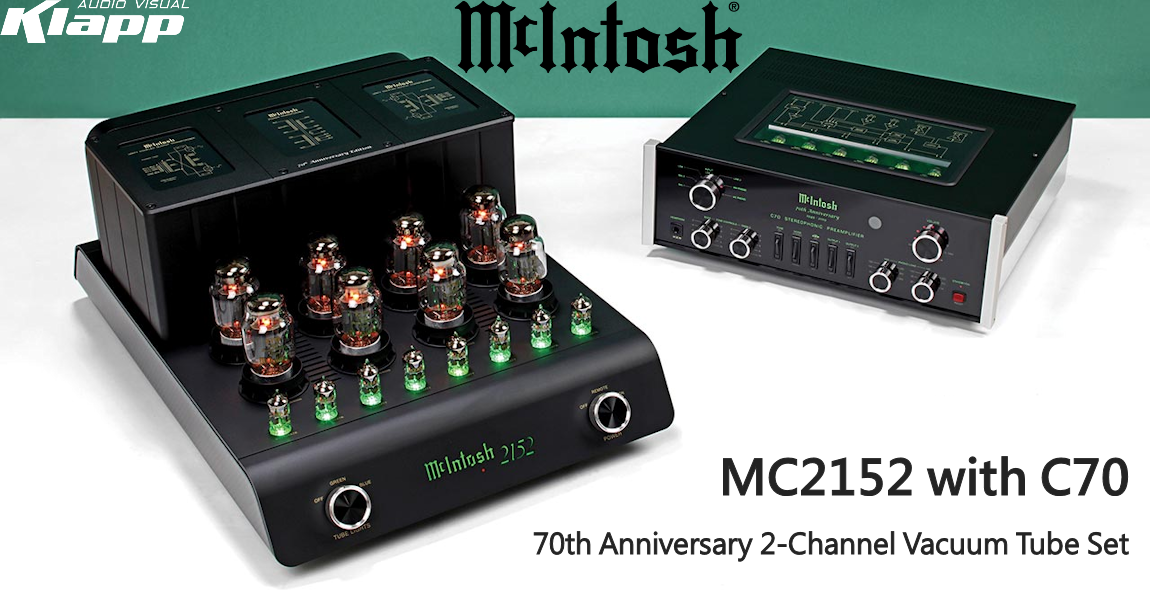

MC2152 Tube Amplifier with C70 Preamplifier
2-Channel Vacuum Tube Set

70th Anniversary Limited Edition Commemorative System.

Hurry! Last one

About MC2152:

The MC2152 70th Anniversary Vacuum Tube Amplifier is a 150 Watt per channel stereo amplifier and features a striking new design to celebrate our seven decades of handcrafting some of the best home audio equipment the world has ever heard.

While its design is new, the MC2152 incorporates the lessons we’ve learned and the techniques we’ve invented in our 70 years of audio engineering

  • 150 Watts x 2 Channels
  • Unity Coupled Output Transformers
  • (8) KT88, (4) 12AX7A and (4) 12AT7 vacuum tubes
  • Striking new design with carbon fiber side panels

Utilizing our patented Unity Coupled Circuit output transformer technology – the same technology the company was founded on in 1949 – the full 150 Watts can be delivered to almost any pair of speakers regardless if they have 2, 4 or 8 Ohm impedance.

The stunning new design of the MC2152 is highlighted by a bead blasted black anodized aluminum chassis accentuated with matte finish carbon fiber side panels. The front panel showcases a backlit laser cut McIntosh logo flanked by classic McIntosh knobs. The vacuum tubes are covered by a 12-gauge stainless steel wire cage with a black powder coated finish.

To the back are the two Unity Coupled Output Transformers with the power transformer centered between them. All three transformers are housed in glass topped extruded enclosures displaying the wiring diagram for each transformer. A 70th Anniversary badge is laser engraved into the top plate of the enclosures.

The MC2152 uses eight KT88 output vacuum tubes plus eight small signal tubes comprised of four 12AX7A and four 12AT7 vacuum tubes; half of the tube complement is assigned to each audio channel. The 12AX7A vacuum tubes are for the Balanced and Input amps, while the 12AT7 tubes are for the Voltage and Driver amps. The LEDs under the eight small signal tubes can be set to three illumination settings: Off (which allows the tubes natural amber glow to be visible), Green or Blue – a new color option unique to the MC2152. Our Sentry Monitor™ technology monitors the output current and shuts the amplifier off if it ever exceeds safe limits.

On the back are both balanced and unbalanced inputs, along with our patented Solid Cinch™ speaker binding posts to securely connect your speaker cables to your speakers, and an input and output for our Power Control technology that will automatically turn other connected McIntosh components such as preamplifiers, CD players or turntables, on and off.


Specifications

  • Power Output per Channel
    150W @ 2, 4 or 8 Ohms
  • Number of Channels
    2
  • Total Harmonic Distortion
    0.5%
  • S/N below rated output
    112dB
  • Dynamic Headroom
    1.2dB
  • Damping Factor
    >18
  • Rated Power Band
    20Hz to 20kHz
  • Frequency Response
    +0, -0.25dB from 20Hz to 20,000Hz
    +0, -3dB from 10Hz to 70,000Hz

Control

  • Remote Power Control
    Yes
  • Multi-Channel DB25 Cable
    N/A

Connectivity

  • Speaker Binding Post Type
    Patented Solid Cinch™ Speaker Binding Posts

General Specifications

  • Circuit Configuration
    Unity Coupled
  • Circuit Design
    Vacuum Tube
  • Mono Bridge
    No
  • Mono Parallel
    No
  • Output Type
    Unity Coupled Output Transformer
  • Meters
    No
  • Meter Light Switch
    N/A
  • Balanced Input
    2
  • Front Panel
    N/A
  • Illumination
    Small Signal Tubes: Green, Blue, Natural
  • Chassis Style
    Bead blasted black anodized aluminum with matte finish carbon fiber side panels

Weights & Dimensions

  • Dimensions (W x H x D)
    17-1/2" (44.45cm) x 10-1/4" (26cm) (including feet) x 28" (71.1cm) (including front panel and cables)
  • Weight
    125 lbs (56.7 kg)
  • Shipping Weight
    138 lbs (62.6 kg)



About C70:

The C70 70th Anniversary Vacuum Tube Preamplifier harkens back to yesteryear with an all analog design and a retro look. The glass front panel is inscribed with special McIntosh 70th Anniversary lettering.

  •  All analog design and a retro look
  •  (5) 12AX7A and (1) 12AT7 vacuum tubes
  •  Moving Coil and Moving Magnet phono inputs


The C70 features one 12AT7 and five 12AX7A vacuum tubes that are visible through a glass panel on the top cover. All control operations are done via knobs and rocker switches. Modern LED indicators will denote input selection and volume level. The C70 has seven inputs consisting of two balanced inputs, three unbalanced inputs, and one each of Moving Coil and Moving Magnet phono inputs. For outputs, there are two pairs each of balanced and unbalanced connections.

On the front panel, bass and treble tone controls are included and can be adjusted in 2dB increments via rotary knobs. Rotary knobs are also used to adjust the impedance and capacitance for the phono inputs. In addition to controlling the listening level, the volume knob can also adjust the relative volume balance between the left and right audio channels. A ¼” headphone jack powered by our High Drive headphone amplifier is included and features our Headphone Crossfeed Director (HXD®) technology. HXD brings added dimension to your music in a natural sounding way but can be turned off depending on your preferences. Five rocker switches are used to control the following functions: tone control on/ off; change between mono and stereo mode; HXD on/off; and to turn the independent output 1 and output 2 on/off.

he C70 sits atop a beautiful polished stainless steel chassis and features the timeless McIntosh black glass front panel, illuminated logo, control knobs, and aluminum end caps. Our Power Control technology is included with four ports that can automatically turn other connected McIntosh components such as amplifiers, CD players or turntables, on and off. Data ports are also present and can control basic functions of connected McIntosh source components via the C70’s remote control.


Specifications

  • Total Harmonic Distortion
    0.08%
  • Frequency Response
    +0, -0.5dB from 20Hz to 20,000Hz
    +0, -3dB from 15Hz to 100,000Hz
  • Maximum Volts Out (Balanced / Unbalanced)
    16/8 V RMS
  • Input Impedance (Balanced / Unbalanced)
    44K ohm, 22K ohm
  • Phono Voltage Gain
    Moving Magnet: 40dB
    Moving Coil: 60dB
  • High Level Voltage Gain
    To Output 1 and 2: 15dB
  • Signal To Noise Ratio
    100dB
  • Dual Mono Power Supply
    No
  • Dual Mono, Fully Balanced
    No

Connectivity

  • Balanced Input
    2 Stereo
  • Unbalanced Input
    3 Stereo + 2 Phono
  • Phono Input Moving Coil
    1 (adjustable)
  • Phono Input Moving Magnet
    1 (adjustable)
  • Digital Coaxial Input
    0
  • Digital Optical Input
    0
  • Digital MCT (DIN) Input
    0
  • Digital USB Input
    0
  • Digital AES/EBU Input
    0
  • Balanced Fixed Output
    0
  • Balanced Variable Output
    2 Stereo
  • Unbalanced Fixed Output
    0
  • Unbalanced Variable Output
    2 Stereo
  • Headphone Output
    1/4" High Drive with Headphone Crossfeed Director (HXD®)
  • Record Processor Loop
    No
  • Input Level Match
    No
  • Home Theater PassThru
    No
  • Unbalanced Analog Connector Type
    Premium gold-plated solid brass

Control

  • Tone Controls
    Bass and Treble
  • Tone Bypass and Input Assign
    Tone Bypass: Yes
    Input Assign: No
  • RS232 Control Input
    No
  • Power Control Output
    2 Main, 2 Switched
  • Rear Panel Data Port
    5
  • Rear Panel IR Sensor Input
    Yes

General Specifications

  • Multi-Chassis or Single
    Single, two layer
  • Output Meters
    No
  • Vacuum Tube or Solid State
    Vacuum Tube: (5) 12AX7A and (1) 12AT7
  • Power Consumption (On)
    50 Watts

Weights & Dimensions

  • Dimensions (W x H x D)
    17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)
  • Weight
    25 lbs (11.3kg)
  • Shipping Weight
    41.4 lbs (18.8kg)
